Ultra Racing for 2019 Lexus NX300 is available NOW!

Lexus Malaysia has officially launched the updated version of SUV – 2019 Lexus NX300. The updated version of 2019 Lexus NX300 has improved on the comfort, performance and safety.

Under its hood lies a 2.0-liter In-line 4 engine with Twin-scroll Turbocharged, it is paired to Dynamic Torque Control AWD and a six-speed conventional automatic transmission with shift paddles.

Moving to the suspension, it was taken care by MacPherson Strut at the front and Trailing Arm Type Double Wishbone with OEM stabilizer bar in a solid 23mm for 2WD and a solid 20mm for 4WD at the rear.

How many bars available for 2019 Lexus NX300 (AZ10)?

In Ultra Racing, the bars that are available for the 2019 Lexus NX300 (2WD & 4WD) are Front Strut Bar, Rear Anti Roll Bar, Front Lower Bar in 4 points, Mid Lower Bar, Rear Lower Bar and Rear Lower Side Bar.

The functionality of each of the bars after installed on your Toyota Yaris are explained below.



Stage 1: Front Strut Bar and Rear Anti Roll Bar

Stage 1 which includes Front Strut Bar and Rear Anti Roll Bar, is the primary set to enhance the performance of your car.

Front Strut Bar / Front Tower Bar

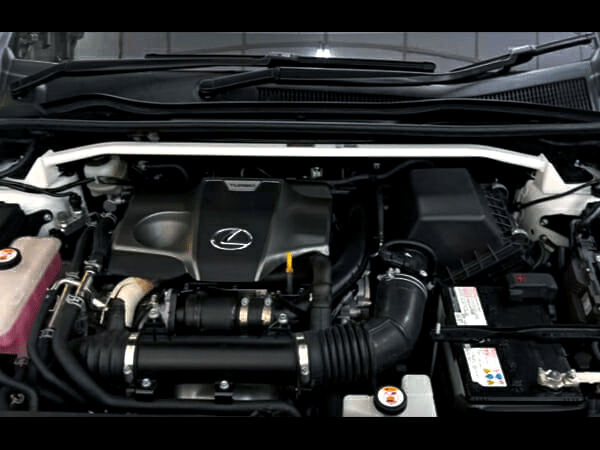

                      2019 Lexus NX300 (2WD & 4WD) Front Strut Bar

The 2019 Lexus NX300 (2WD & 4WD) doesn’t come with the OEM front strut bar from the car manufacturer. Ultra Racing has developed a 2 points front strut bar, located at the top of the absorber (left and right) in order not to affect the normal procedure of service and maintenance.

The car chassis will affect the left and right strut tower and suppress changes in body distortion that occur during running. Furthermore, continuous stress will cause distortion little by little. As known by majority, tire friction, suspension forces, defects from rain water and old car with age will affect a car’s life span. Aftermarket suspension and modifications will also increase the burden of the car chassis.

One of the methods to deal with such a situation is to install a front strut bar/front tower bar, by connecting the left and right strut towers to increase rigidity. Apart from being easy to install, it is the most effective reinforcement part that demonstrates high performance.

Rear Anti Roll Bar / Rear Sway Bar

The OEM rear suspension setups of the 2019 Lexus NX300 (2WD & 4WD) comes with Trailing Arm Type Double Wishbone and OEM rear stabilizer bar. The OEM rear anti roll comes with a solid 23mm for 2WD and a solid 20mm for 4WD. Thus, Ultra Racing decided to develop a solid 24mm for 2WD and 4WD, the purpose of upgrading the OEM rear anti roll bar as it significantly improves the handling performance and maintain the comfortability of the car.


  2019 Lexus NX300 (2WD & 4WD) Rear Anti Roll Bar in solid 24mm

A normal road is not flat as a race track, it comes with an uneven and bumpy road surface. When the left and right suspension alignment are different such as during cornering, the stabilizer twists the bar and suppresses the roll by its restoring force. This will result in an understeer or oversteer and also there’s a risk to lose control if over body roll.

By installing the suitable size of anti roll bar, it is possible to suppress the roll of the vehicle’s body without stiffening the suspension and improving cornering and traction. In addition, since the left and right wobbling is suppressed and the posture is stable, there is no discomfort and the risk of motion sickness is reduced.

Stage 2 (Lower Arm Bar)

Stage 2, comprising Front Lower Bar in 4 points, Mid Lower Bar, Rear Lower Bar and Rear Lower Side Bar for 2019 Lexus NX300 (2WD & 4WD) are able to reduce the car chassis flex and strengthen the main chassis platform. It is highly recommended for heavy load vehicles such as SUV or MPV as it helps to enhance the stiffness and handling during higher speed and cornering.

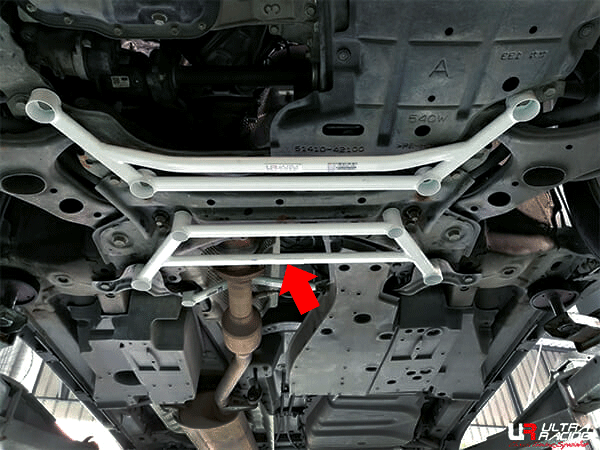

                 2019 Lexus NX300 (2WD & 4WD) Front Lower Bar (1)                                2019 Lexus NX300 (2WD & 4WD) Front Lower Bar (2)


                    2019 Lexus NX300 (2WD only) Middle Lower Bar                                  2019 Lexus NX300 (2WD & 4WD) Rear Lower Bar (1)


                    2019 Lexus NX300 (2WD only) Rear Lower Bar (2)                                  2019 Lexus NX300 (2WD & 4WD) Rear Lower Side Bar




So, it’s time for you to push the handling and performance to the limits with Ultra Racing now!
